Honda K24 TSX Engine
Open the engine. Follow the motion.
Bring an interactive animated engine to your Windows desktop. Explore the architecture of the stock U.S. 2006 Acura TSX K24A2, from the piston and crank motion to the DOHC valvetrain and timing system.
Windows desktop app · v1.0Inspect · Exploded View · Manual VTEC / VTC demonstrations
Version v1.0 · Portable Windows ZIP · 171.46 MB.
Digital download. No physical product.
AT A GLANCE
A familiar engine, opened to exploration.

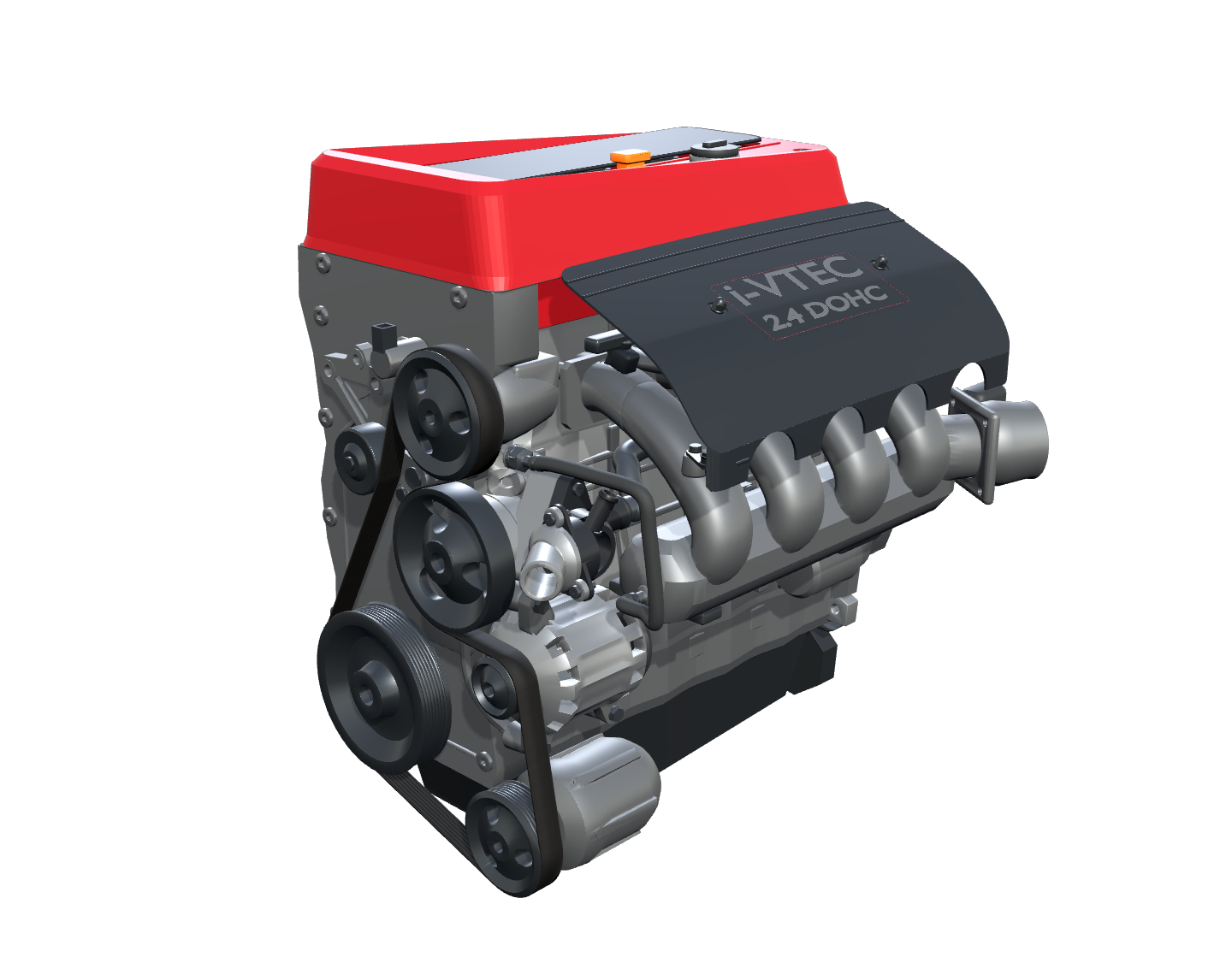

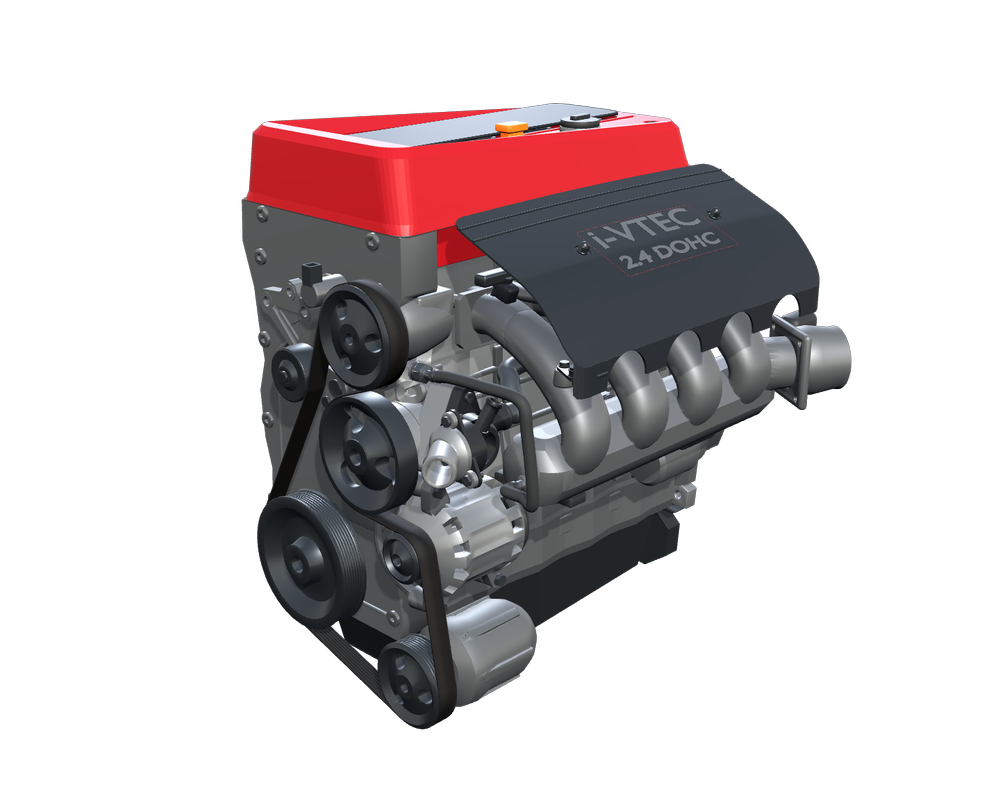

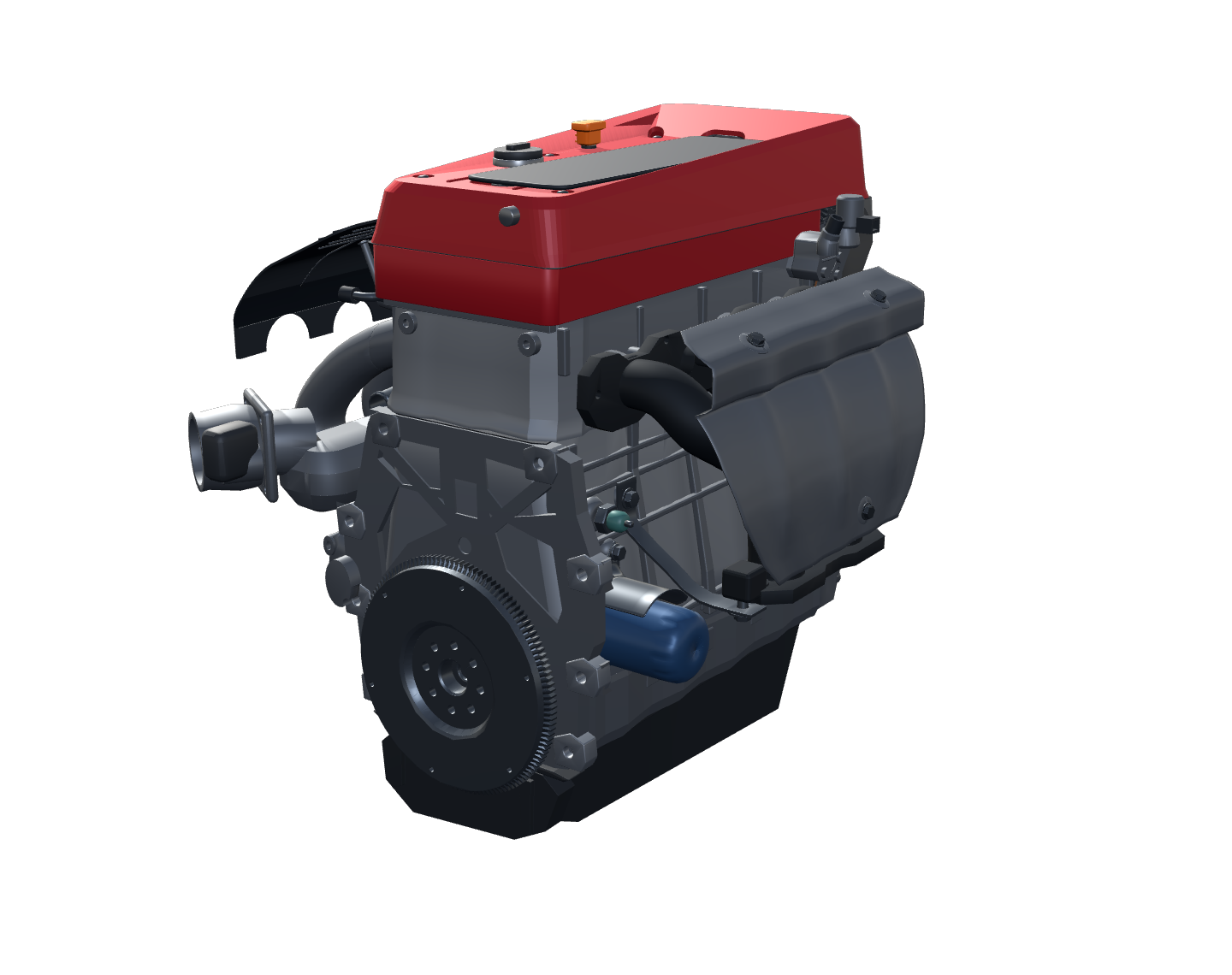

The model represents the K24A2 architecture used in the stock U.S. 2006 Acura TSX. Rotate the assembly, look inside and separate its components to understand how the mechanisms relate.
The transparent desktop presentation lets you place the engine where you want it. Aluminum-gray castings, dark steel components, a black oil pan and the red presentation cover make the parts easy to distinguish.
An educational representation with disclosed approximations. No factory-CAD or manufacturing-accuracy claim.
VISIBLE MECHANICS
Follow the moving components.

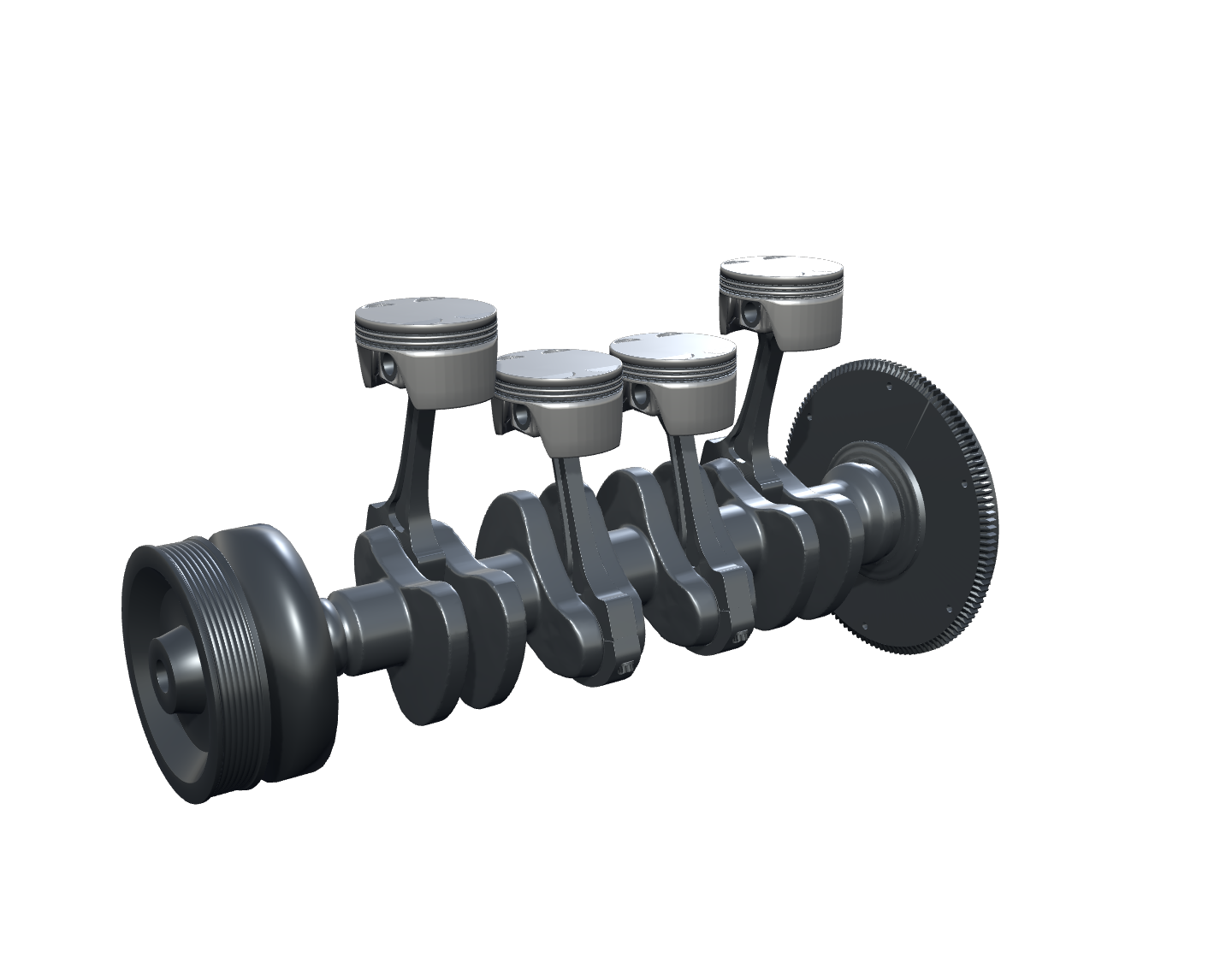

The crankshaft, connecting rods and four matching pistons move together, with hollow, flush wrist pins. Both camshafts, 16 valves and springs, and the rockers are animated. Timing sprockets and the chain presentation connect the upper and lower mechanisms; accessory pulley and belt-flow animation and a rear flywheel complete the view.

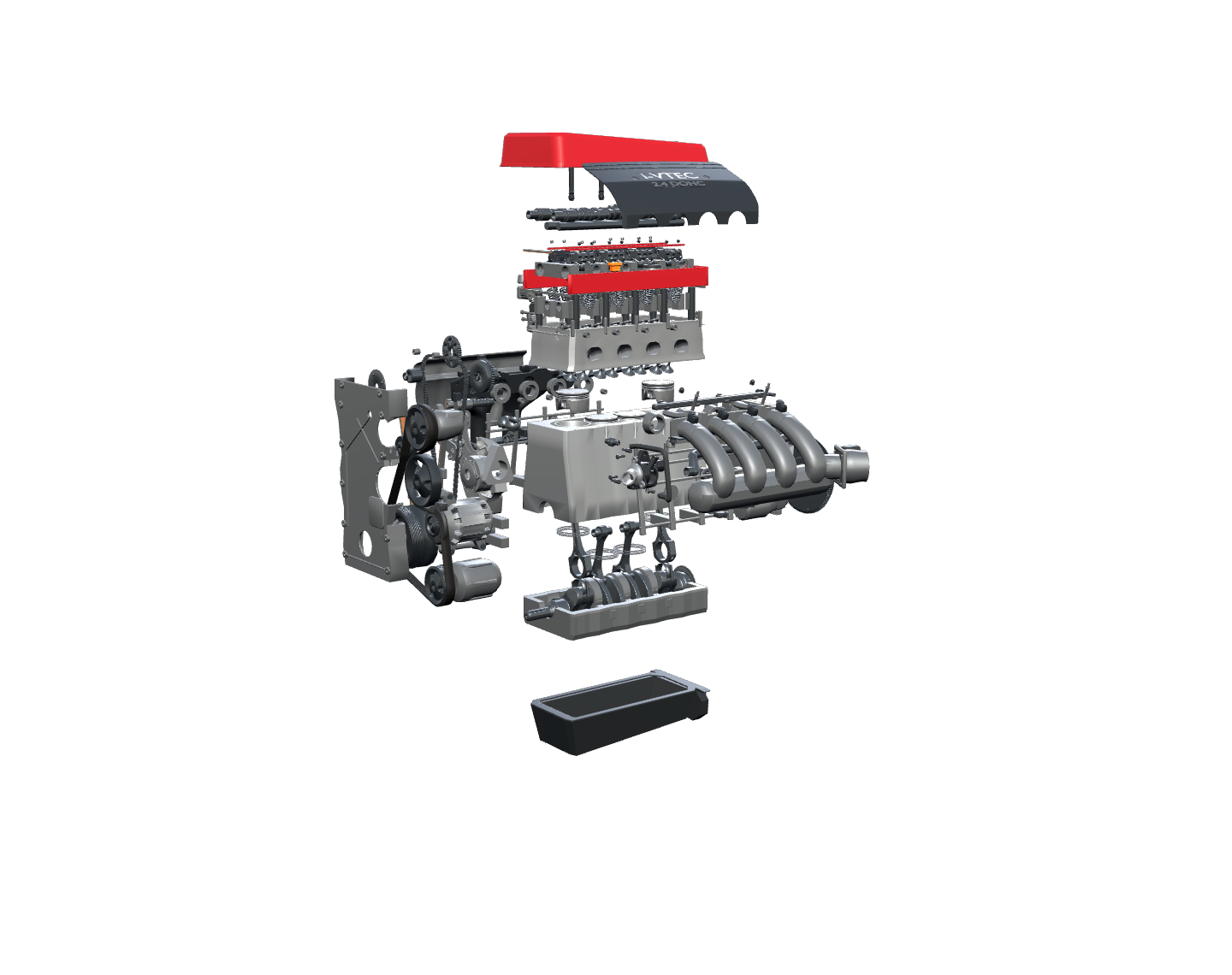

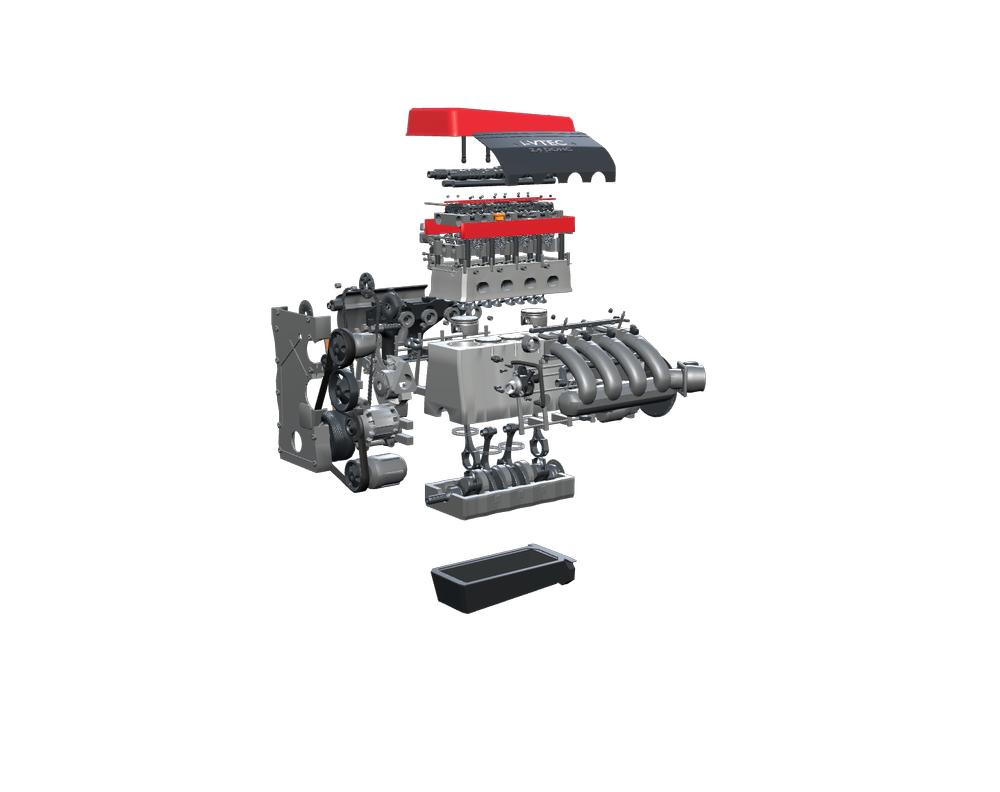

INSPECT / EXPLODED VIEW
See inside. Separate the assembly.

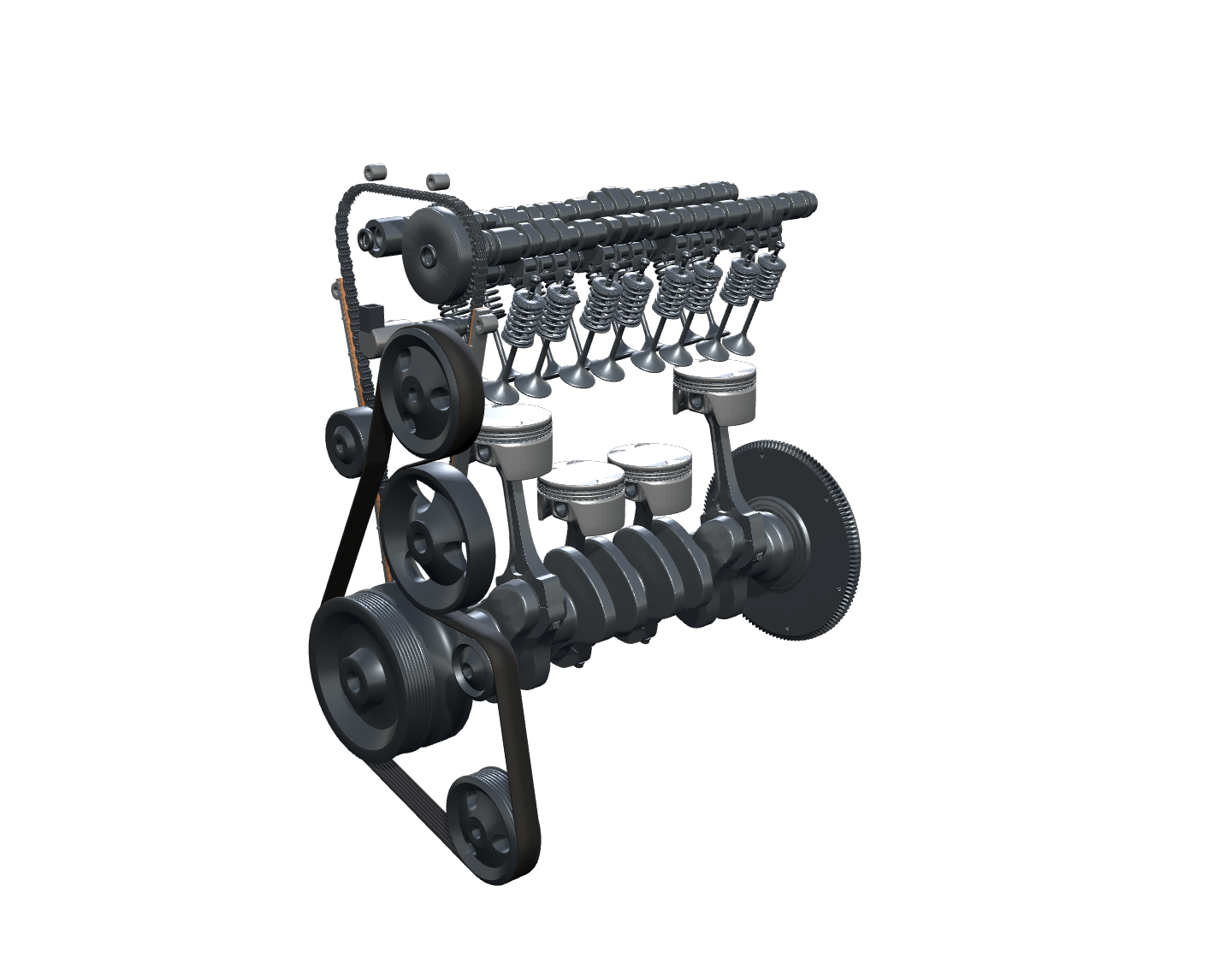

- Inspect exposes the internal mechanisms
- Exploded View separates organized components
- Inspect and Explode combine independently
- Pause and resume mechanical motion
- Pan, orbit and zoom manually
- Reset returns the view in place
Explode moves the parts while keeping the engine root, camera, orientation and zoom fixed. Some parts may leave the viewport; pan, orbit or zoom to inspect them. There is no automatic fit. Explosion pauses mechanical motion, and reassembly restores the prior running state.

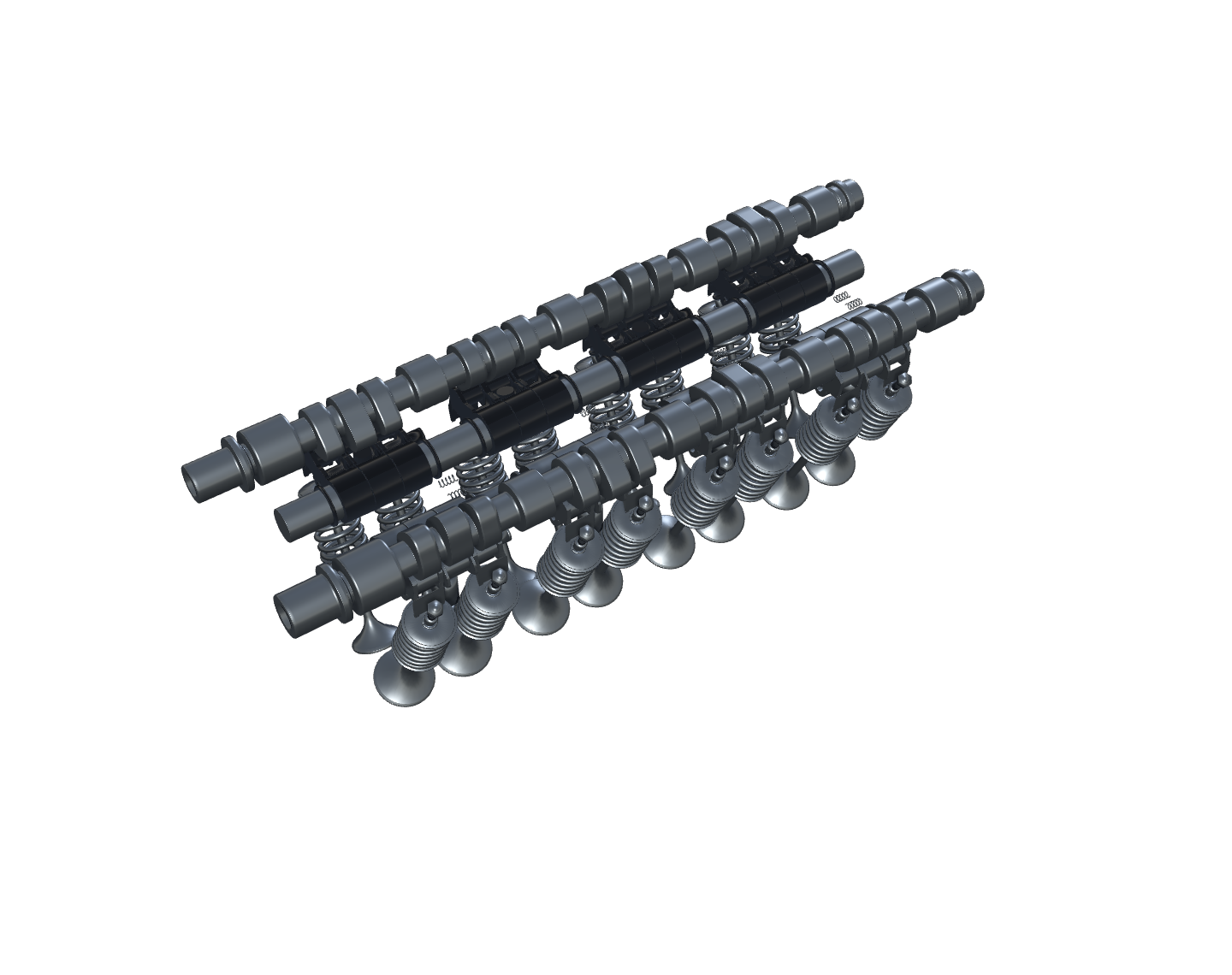

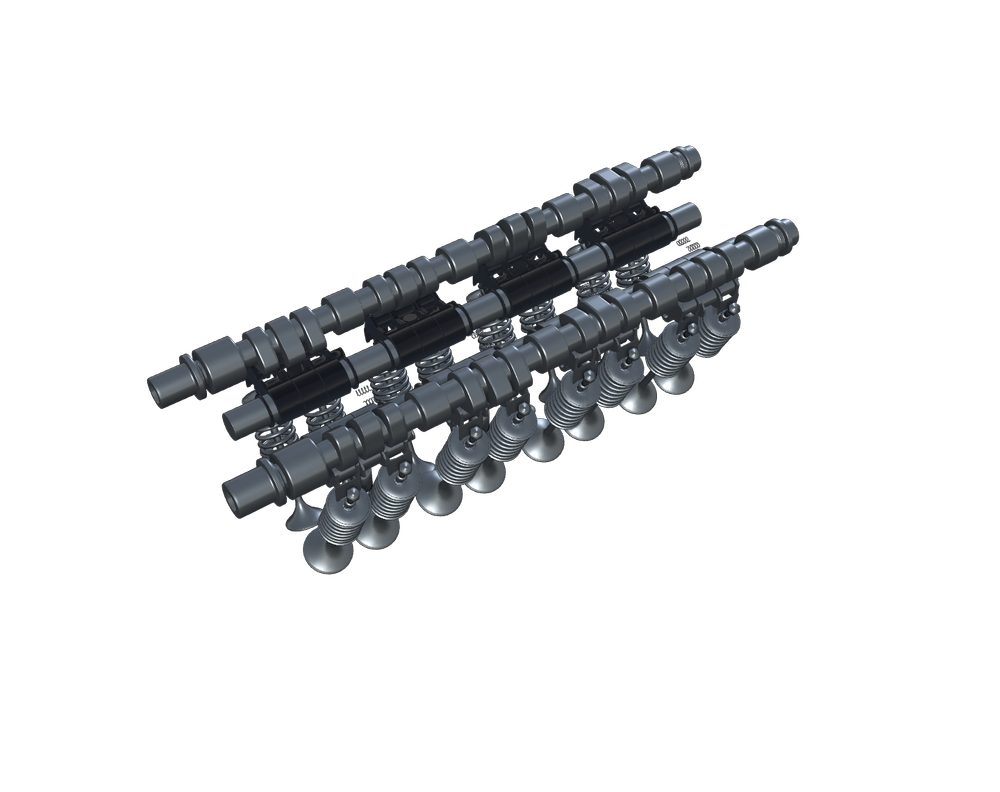

DOHC / VALVETRAIN
Explore the lift and timing demonstrations.
Use manual VTEC controls to switch between low and high lift-profile demonstrations. Manual VTC offers 0 or +20 crank-degree settings.
Cam and rocker motion, VTEC coupling and VTC advance are partly schematic or approximated. These are educational demonstrations; they do not simulate automatic ECU or hydraulic operation.

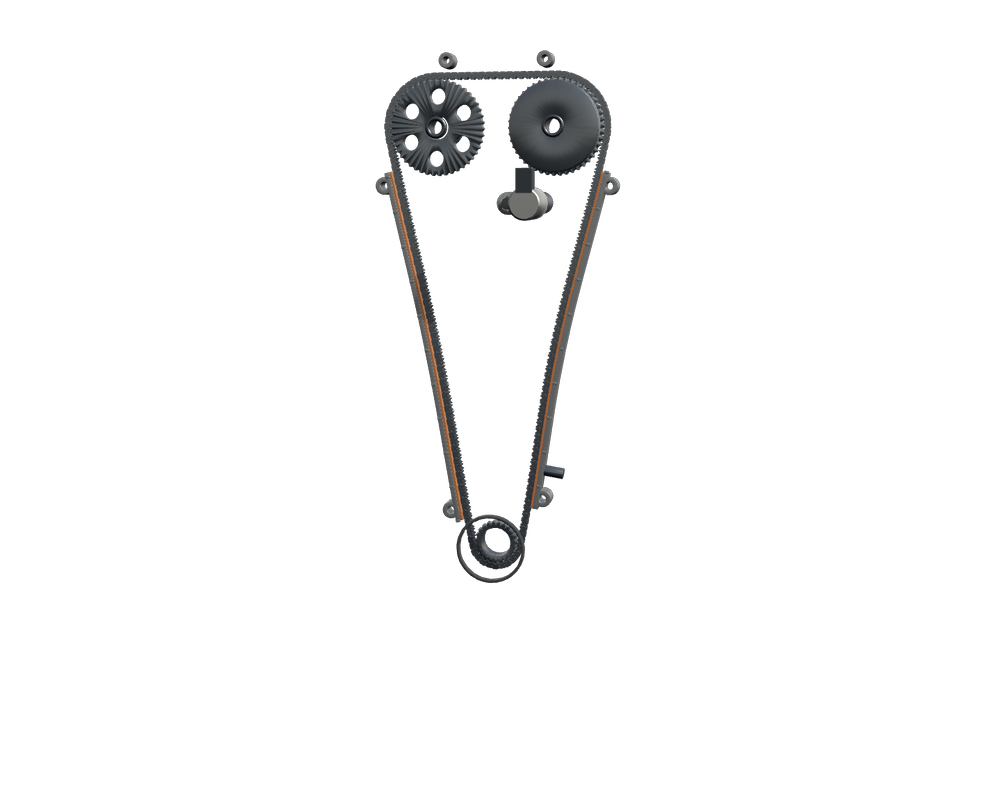

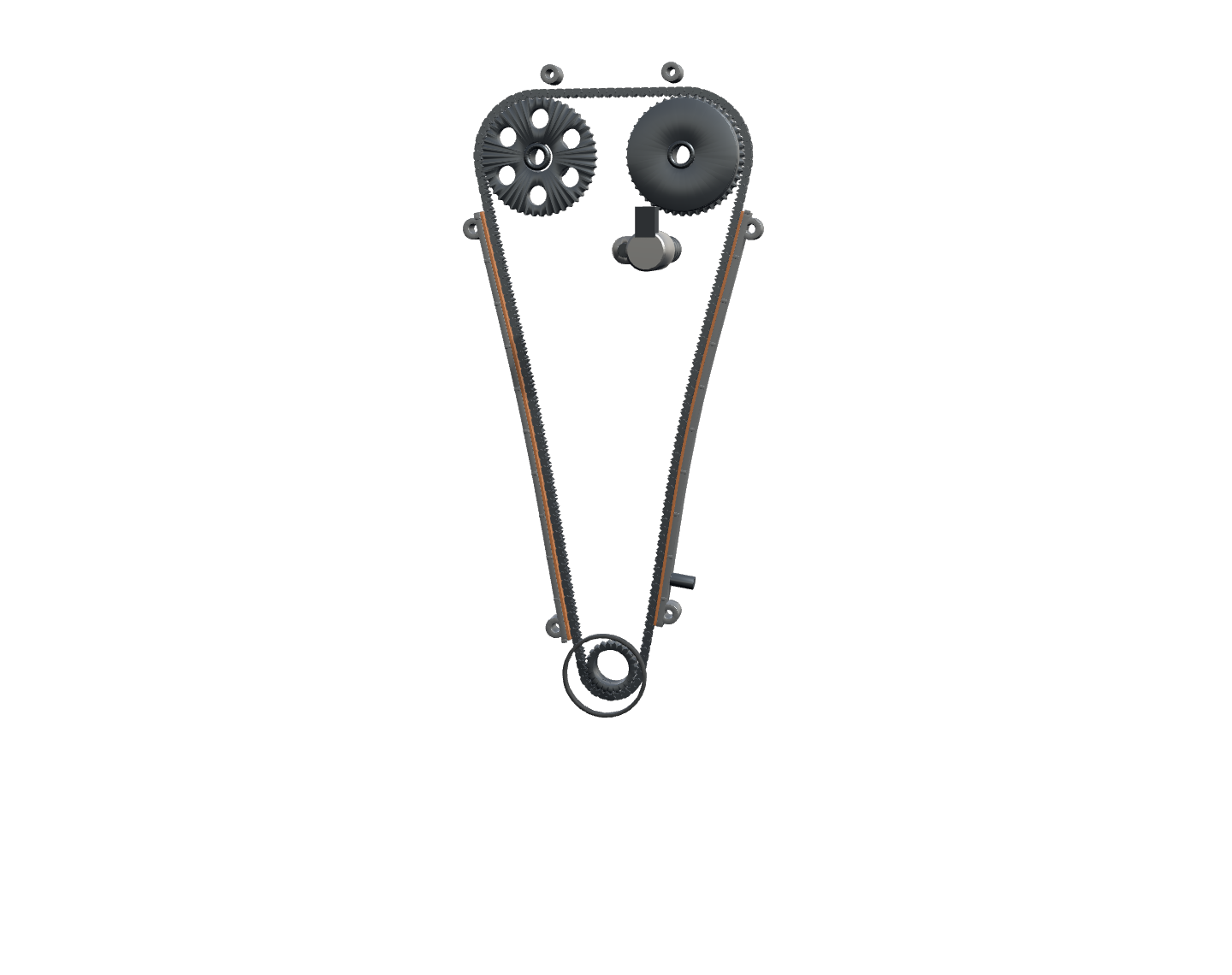

Timing-system detail
Study the timing sprockets and chain presentation alongside the moving valvetrain. The model makes their relationship visible for exploration.
RPM / SLOW MOTION
Slow down to see the mechanism.
The slider displays 60–2500 RPM, with IDLE at 850 and a 1500 marker. Actual animation runs at 60–1000 RPM, mapped linearly from the display. Use the 60 setting for slow-motion inspection.
Animation RPM = 60 + (displayed RPM − 60) × 940 / 2440
Displayed RPM is an educational control, not the stock engine’s operating range. v1.0 includes no audio.
CUSTOMER CONTROLS
Make the mechanism visible.
Click the engine to show its compact controls.
- Left-drag
- Move the engine on your desktop when unlocked
- Right-drag
- Pan the view
- Middle-drag
- Orbit the engine
- Mouse wheel
- Zoom in or out
- RPM slider
- 60–2500 displayed RPM; 60–1000 animation RPM, with linear mapping
- E
- Explode / Assemble
- I
- Inspect / complete view
- Space
- Pause / Resume
- R
- Reset view in place
- L
- Lock / Unlock desktop placement
- V
- Manual VTEC low / high lift-profile demonstration
- T
- Manual VTC 0 / +20 crank-degree demonstration
- X close control
- Close the application
Desktop placement, view, RPM/pause and lock persist between sessions. Reset preserves desktop placement. Relaunch uses a single instance. The window is fixed at 960 × 760 and bounded on smaller displays; window size is not saved.
HONDA K24 TSX ENGINE / v1.0
Download and first launch.
Windows requirements
Windows 10 or 11, 64-bit. OpenGL 3.3-capable graphics with current drivers. Allow at least 400 MB free disk space.
No Blender or Godot editor, development tools, administrator installation or internet connection is required.
Release testing used Windows 11 Home 10.0.26200 and Intel UHD Graphics 630 at 960 × 760. Other hardware is not certified; no frame-rate guarantee is made.
Your download
Honda_K24_TSX_Engine_v1.0_Windows.zip
171.46 MB · 171,458,986 bytes · 163.52 MiB.
Extract and run
- Extract the entire ZIP.
- Open the Honda K24 TSX Engine folder.
- Run Honda K24 Engine.exe.
Keep Honda K24 Engine.pck and DesktopEngineHost.exe beside the application. The required helper runs quietly with the product and exits when it closes. Do not launch the helper separately.
Need help?
Visit Product Support or contact Wolfgang Engineering.
EDUCATIONAL REPRESENTATION
A model for mechanical discovery.
Exterior castings, hidden ports and hydraulics, cam/rocker law, VTEC coupling and VTC advance include approximations. The red valve cover is an owner-selected presentation finish, not the stock 2006 TSX factory color.
This is not factory CAD, a manufacturing or service model, or a performance or hydraulic simulation. v1.0 includes no audio, combustion simulation, ECU simulation, oil-flow simulation, or calculated horsepower or torque.
Explore more mechanisms in the Engine Library.
